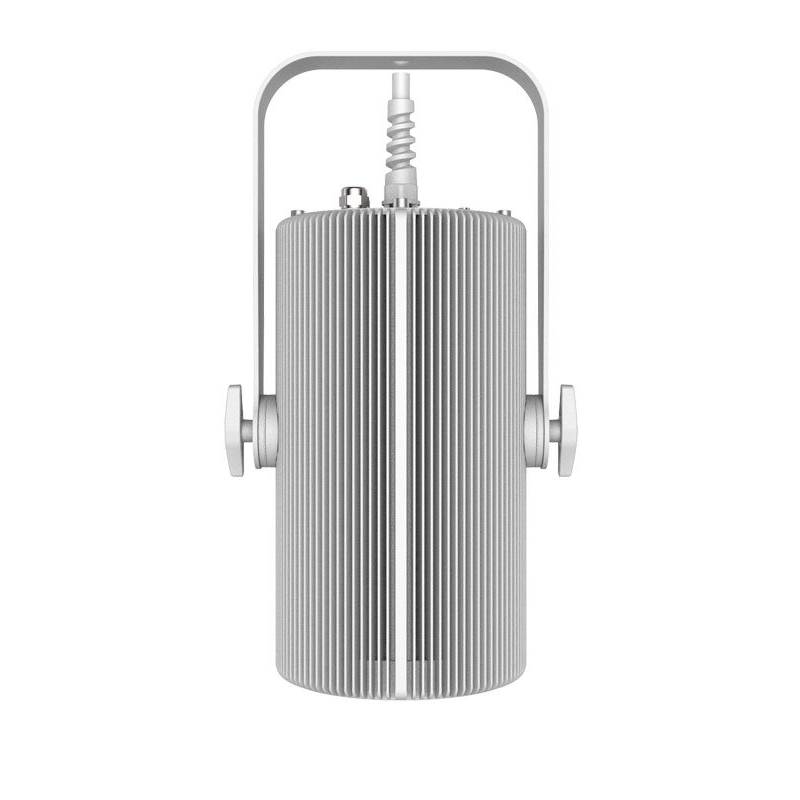

Ovation H-605FC takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package. Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display. White housing not available in European Markets.
Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy.
Color Temperature (at full): 4766K.
CRI (5000 K): 90.
Beam Angle (w/80° filter): 40°.
Beam Angle (w/65° lens): 51°.
Beam Angle (w/45° lens): 39°
Beam Angle (w/25° lens): 37°.
Field Angle (w/80° filter): 80°.
Field Angle (w/65° lens): 79°.
Field Angle (w/45° lens): 66°.
Field Angle (w/25° lens): 37°.
Dimming Modes: 4.
Illuminance (w/80° filter): 163 lux @ 5m.
Illuminance (w/65° lens): 171 lux @ 5m.
Illuminance (w/45° lens): 349 lux @ 5m.
Illuminance (w/25° lens): 1,047 lux @ 5m.
Lumens (w/80° filter): 2,694.Lumens (w/65° lens): 3,769.
Lumens (w/45° lens): 3,769.
Lumens (w/25° lens): 3,938
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
